Nixie clock in acrylic tube and with wooden walls


work

What you get?

  • Fully assembled and tested Nixie clock
  • Six tested Nixie tubes mounted to the clock base (type depends on model)
  • Two neon colon tubes installed into the clock base
  • 12V DC power adapter
  • 2M DC extension cable (optional)
  • IR remote control
  • Built-in proximity sensor
  • User manual

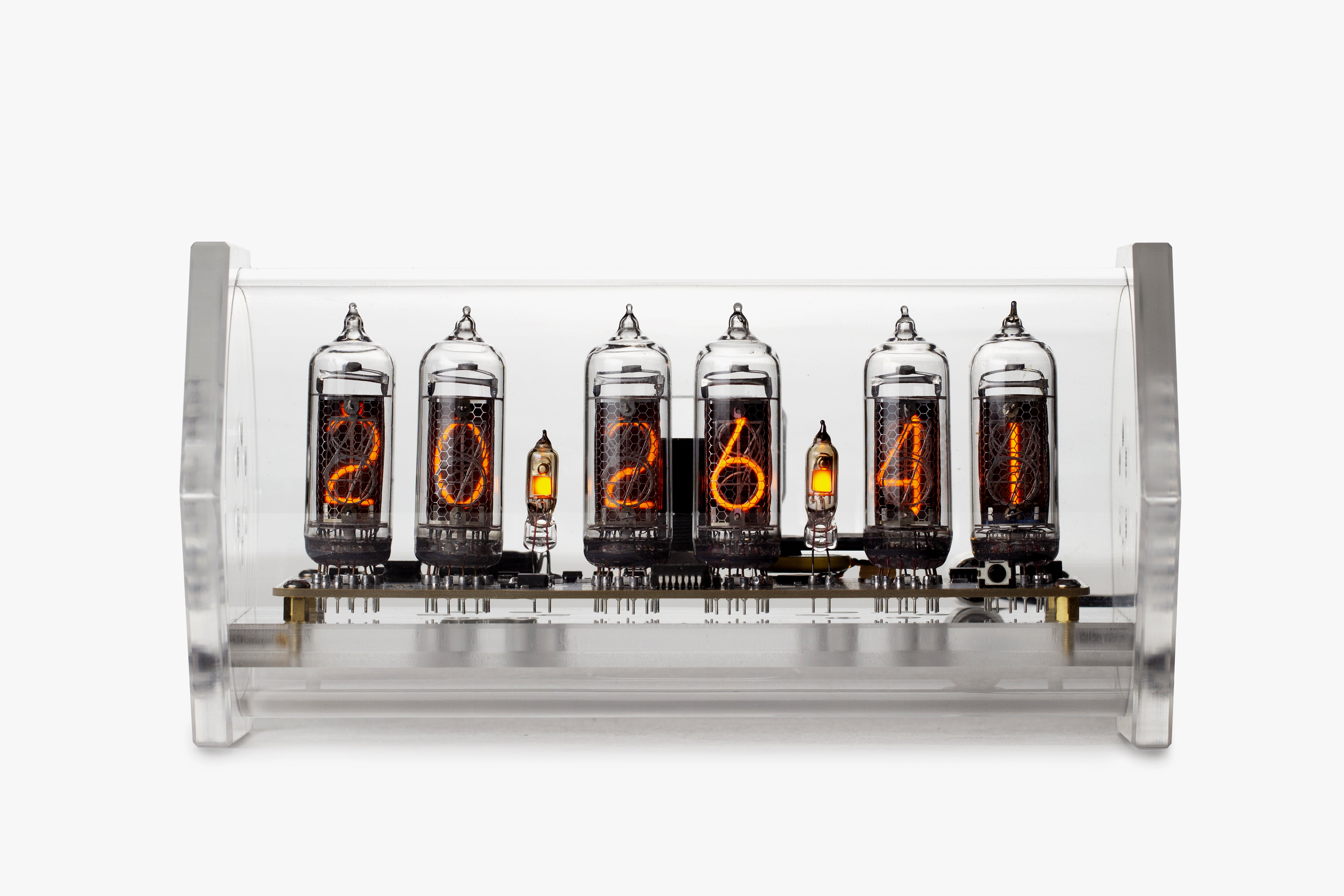

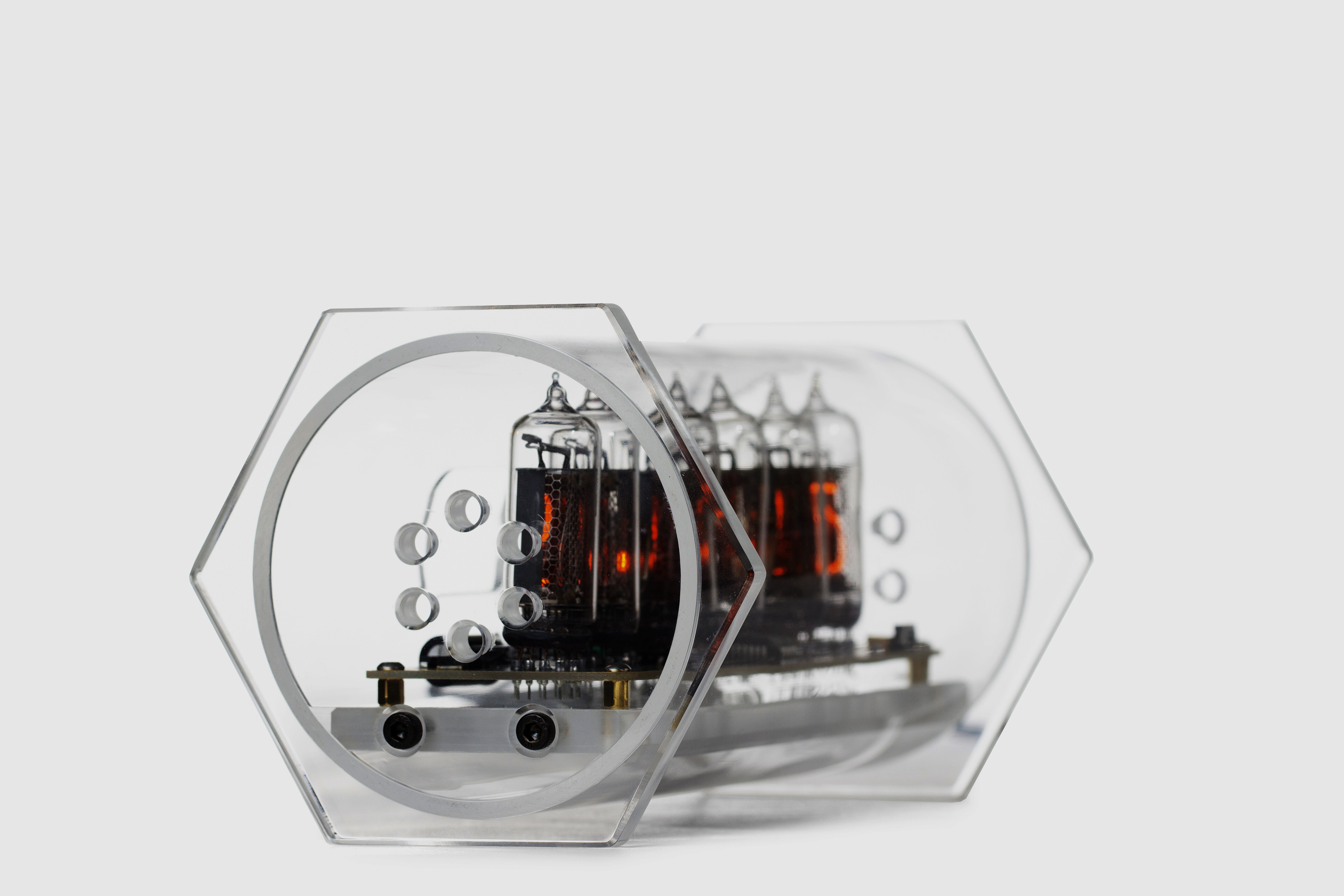

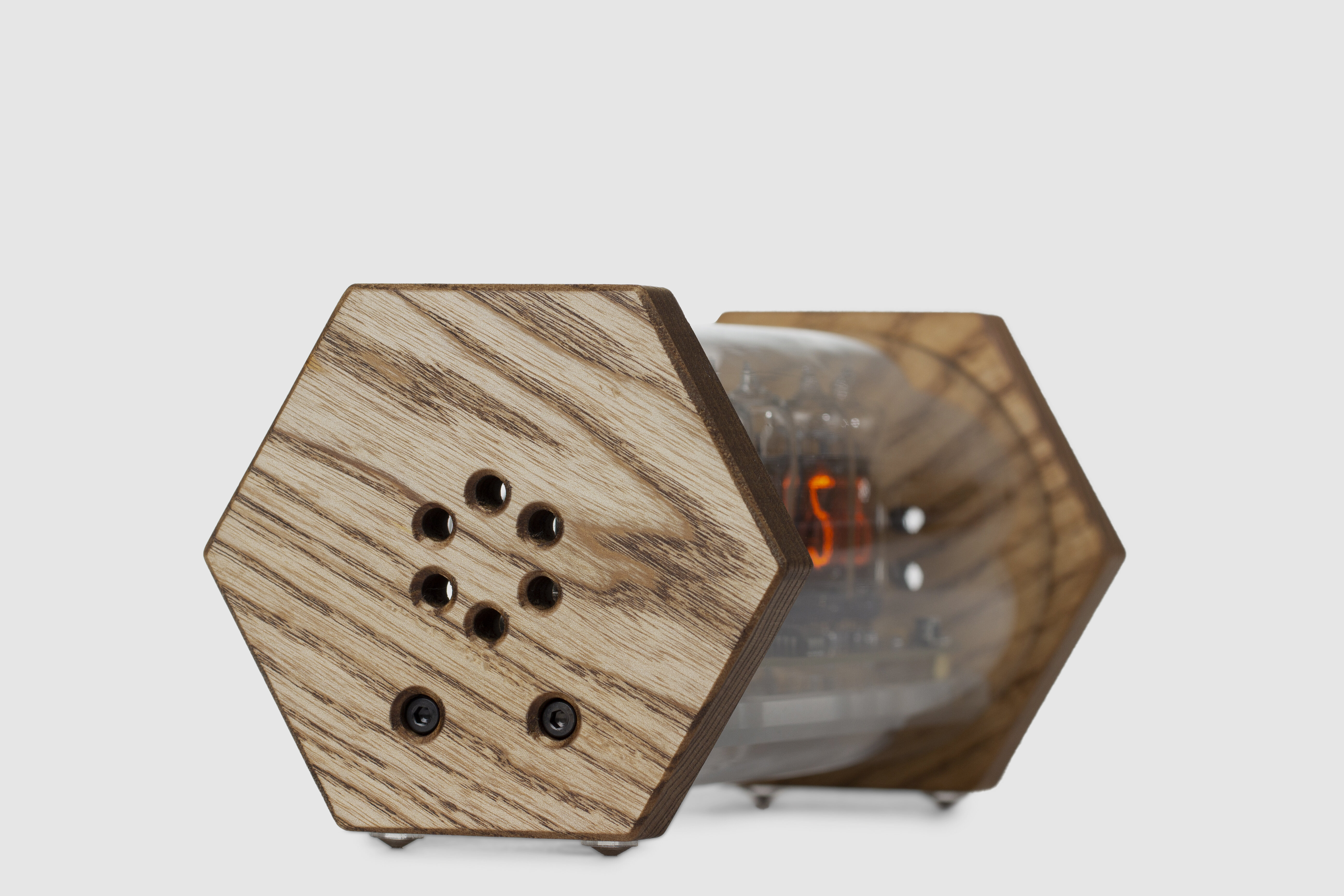

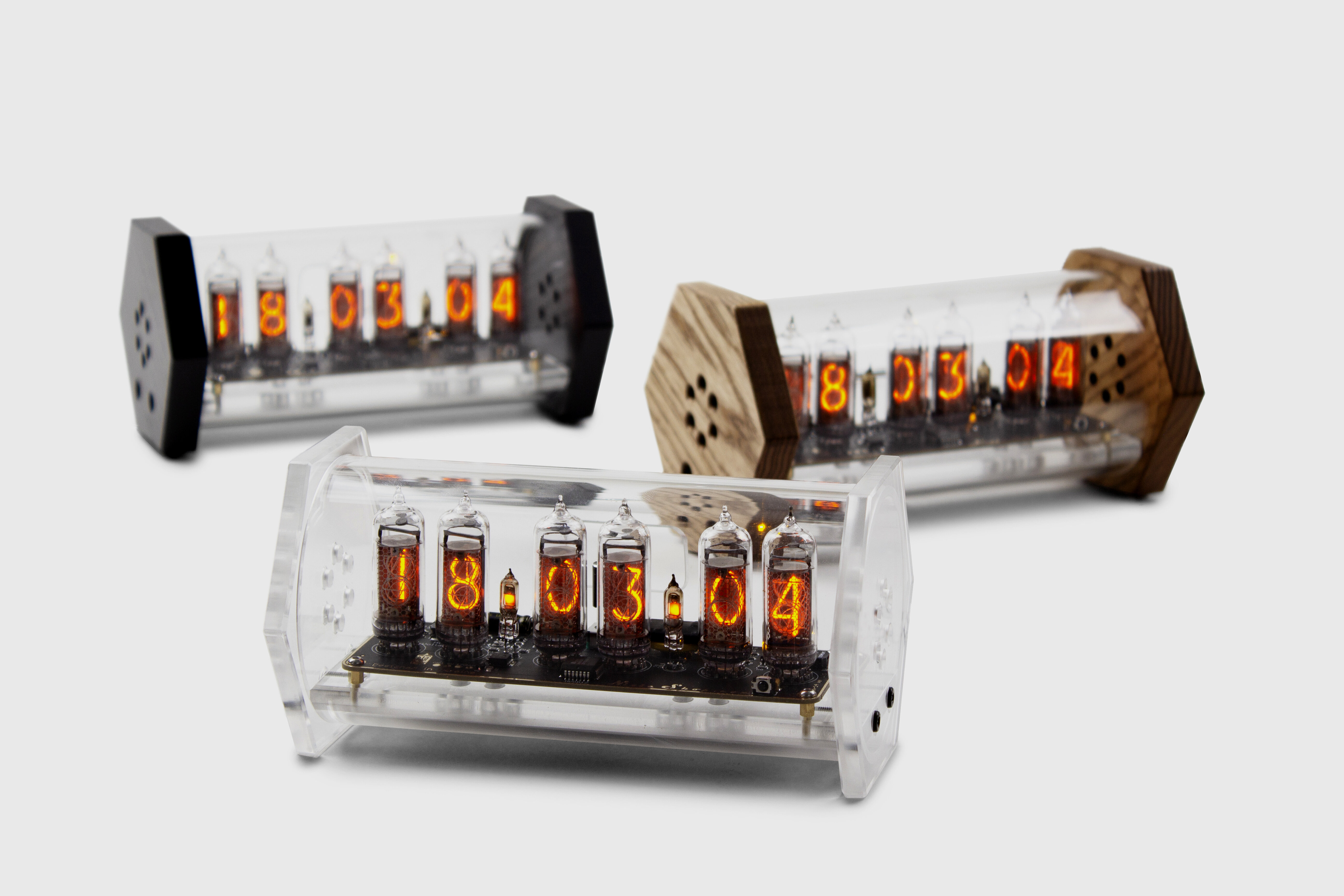

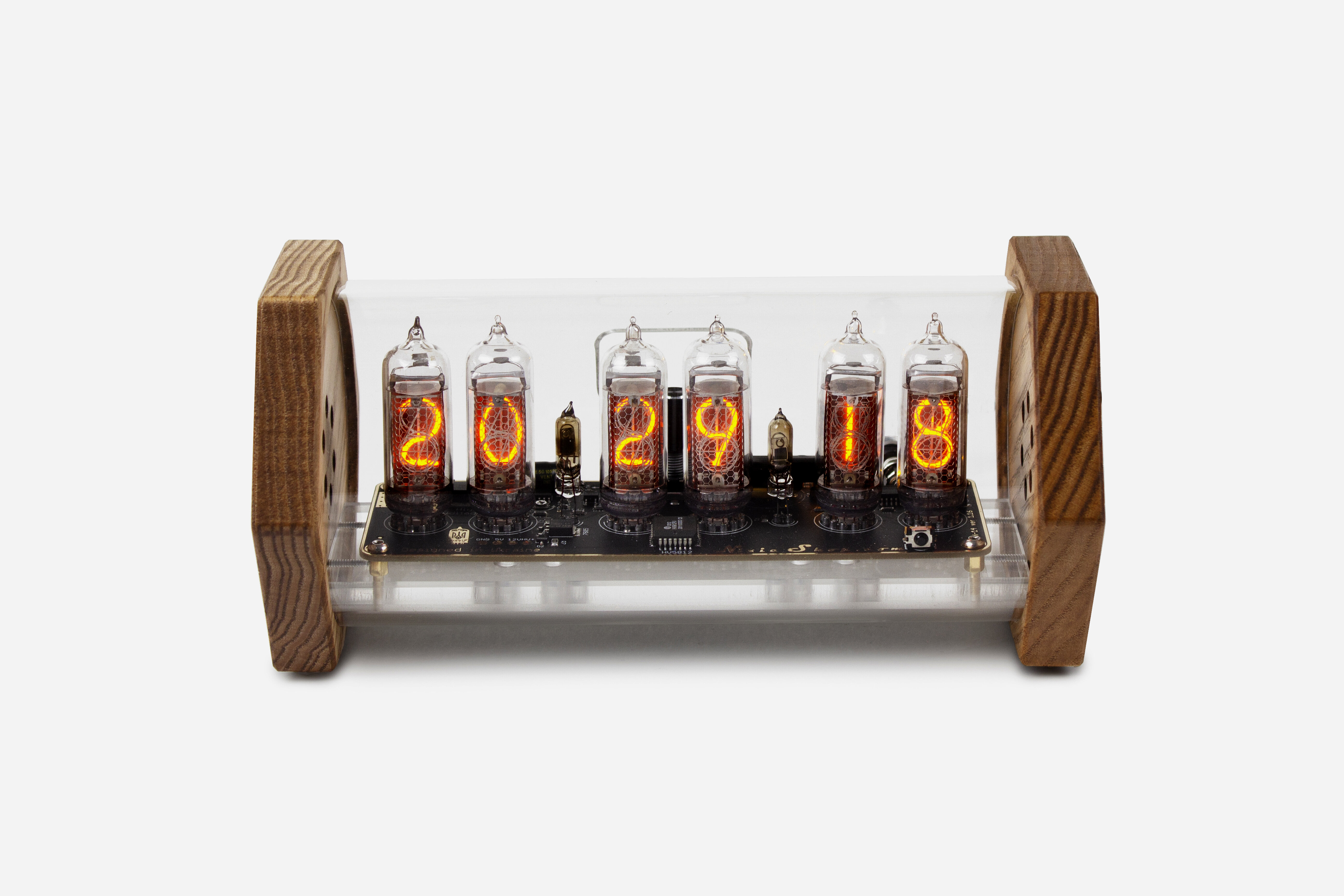

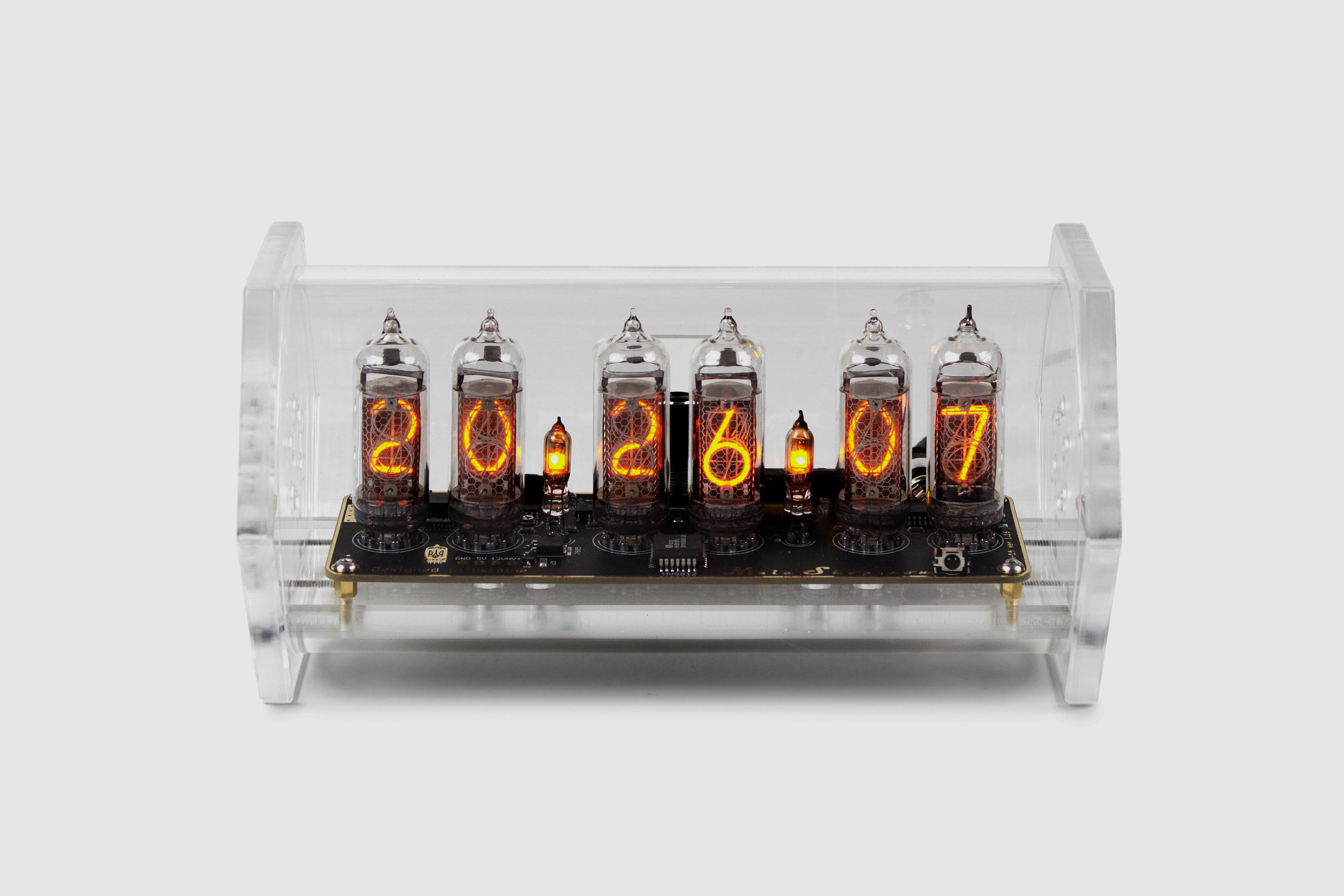

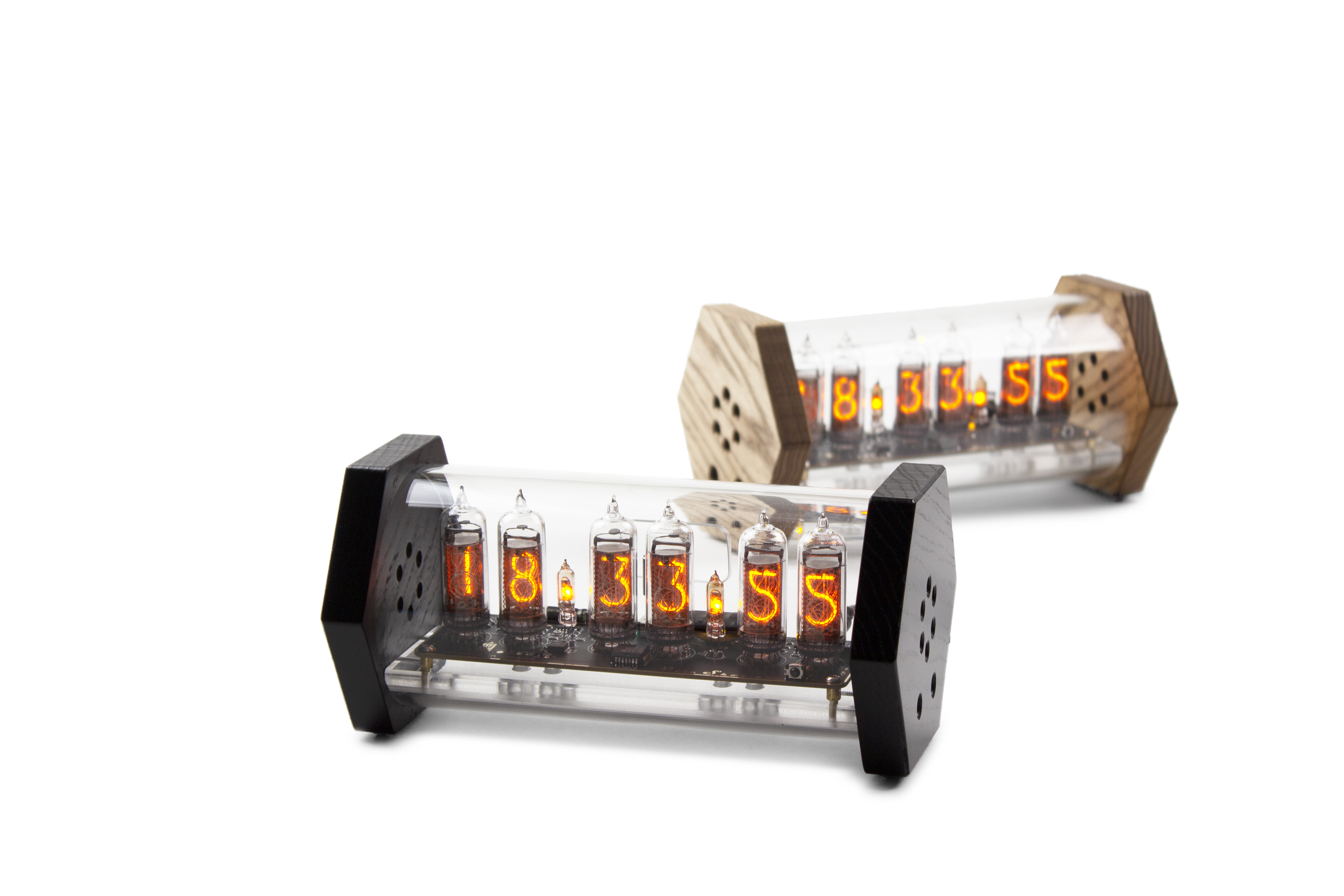

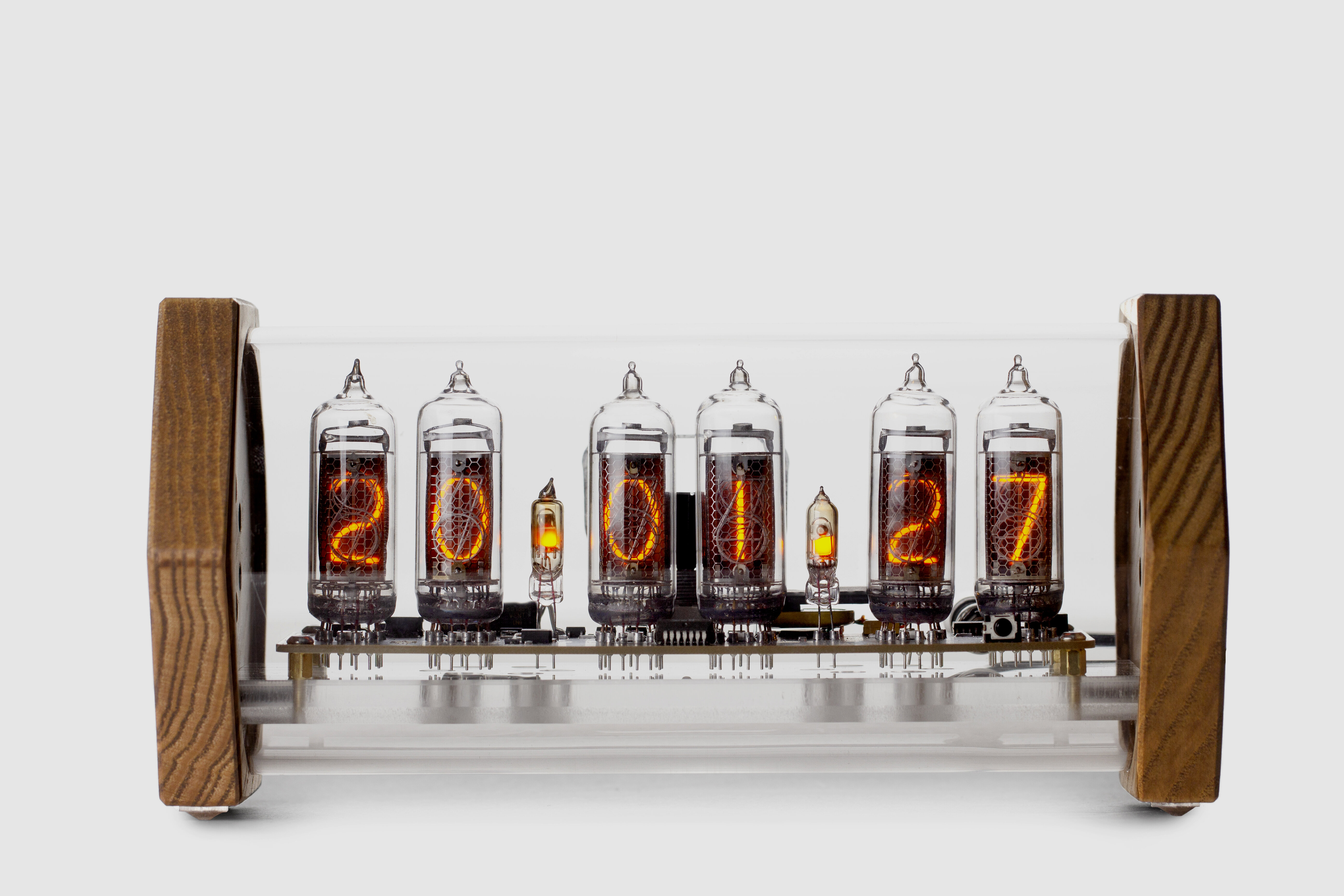

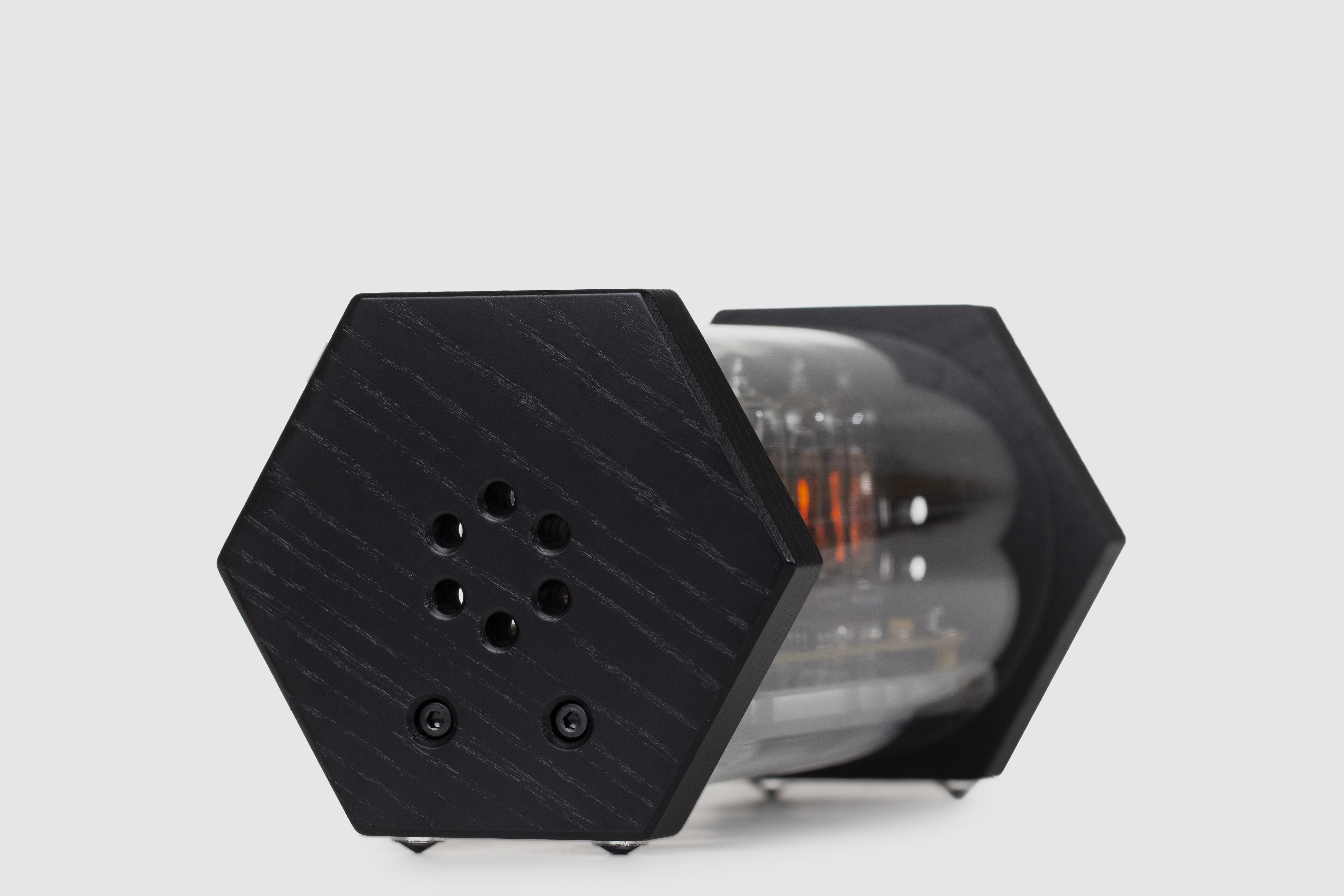

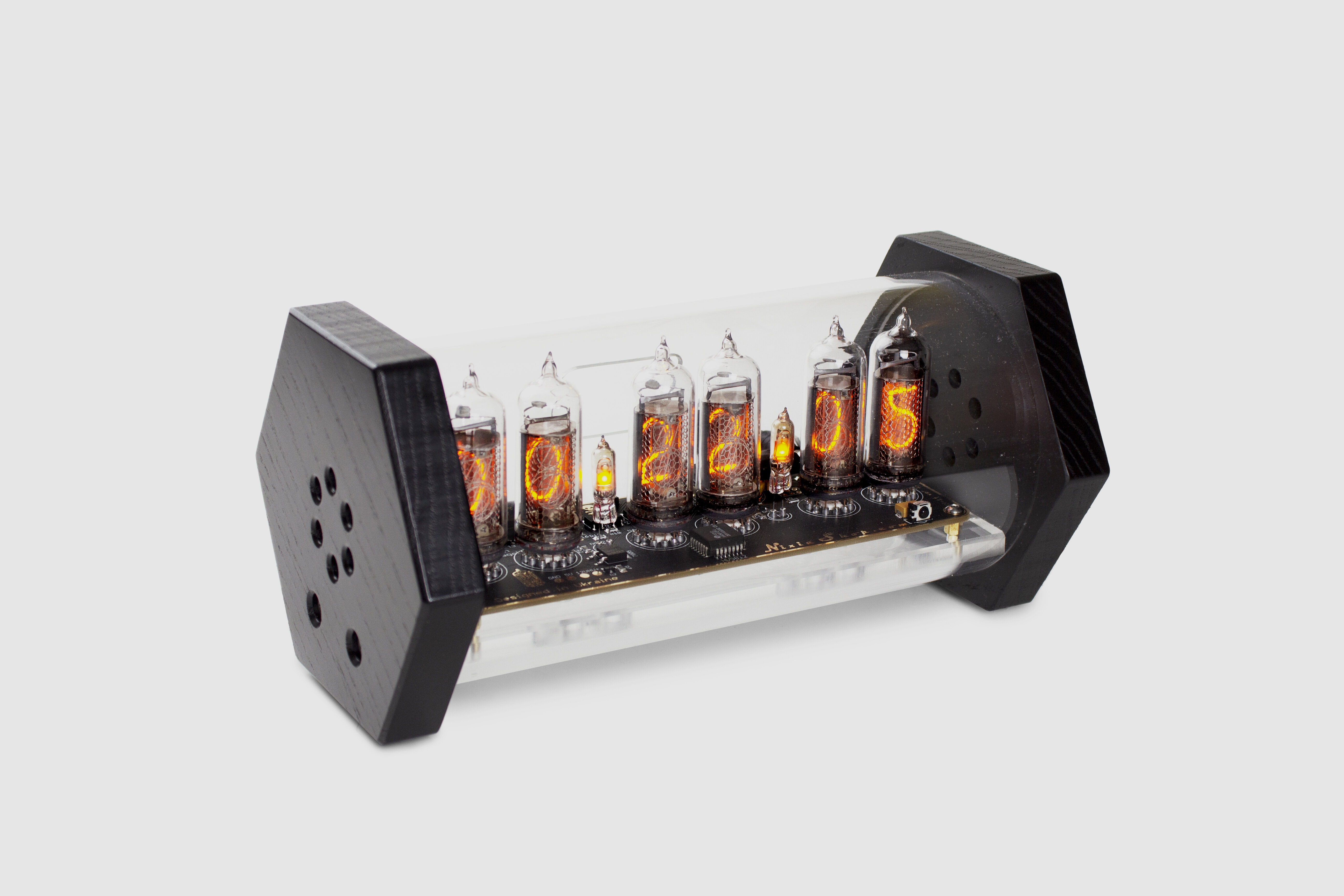

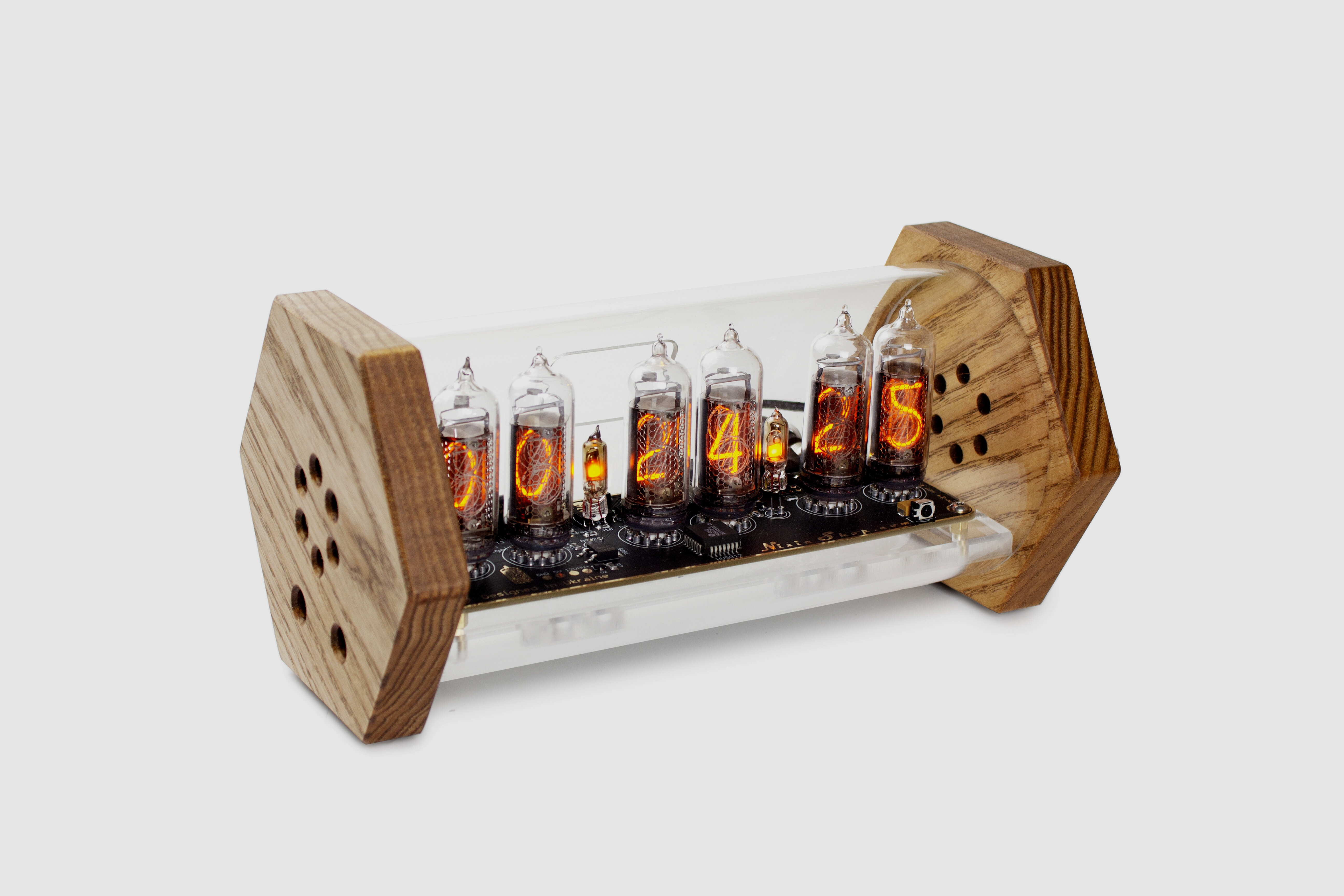

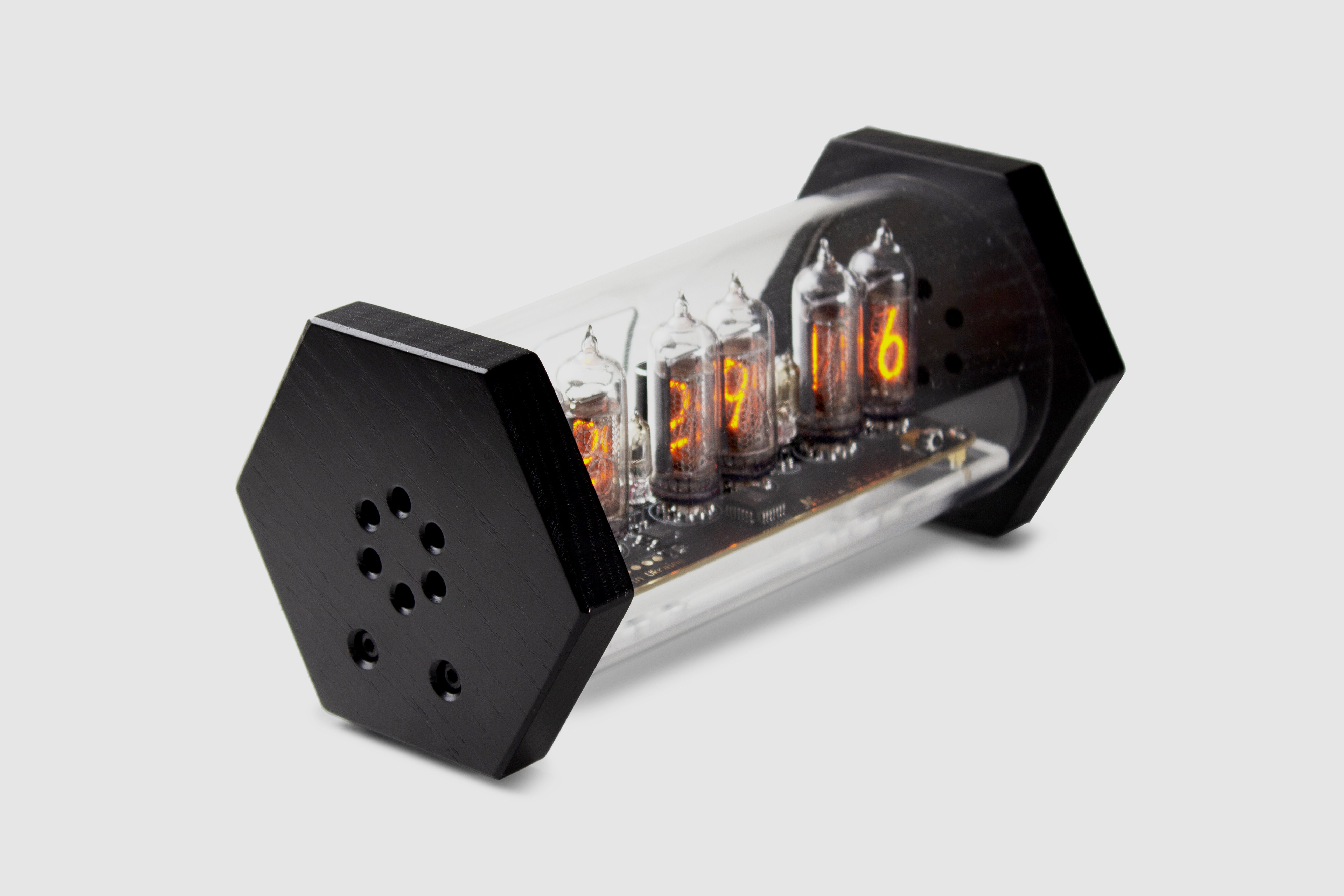

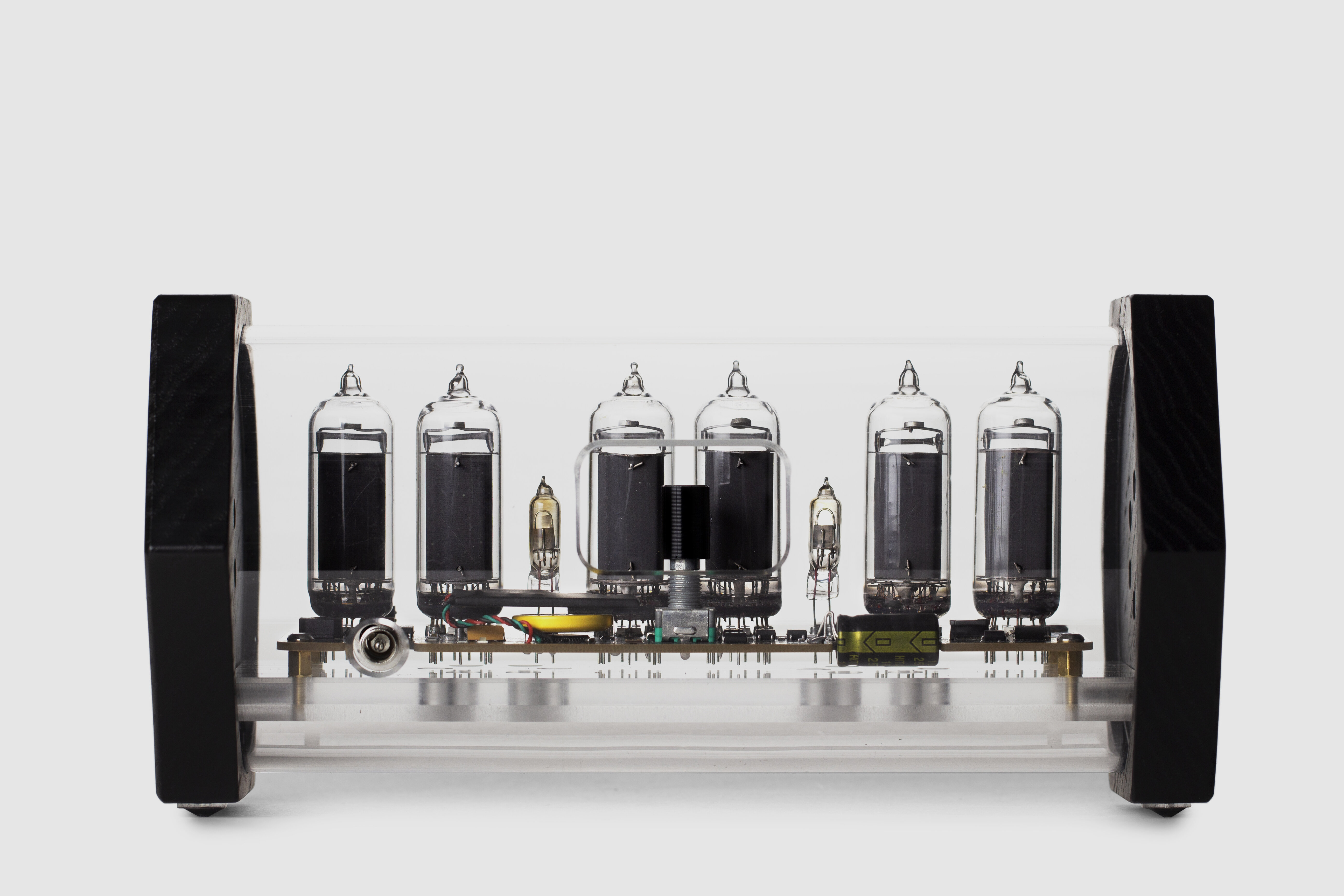

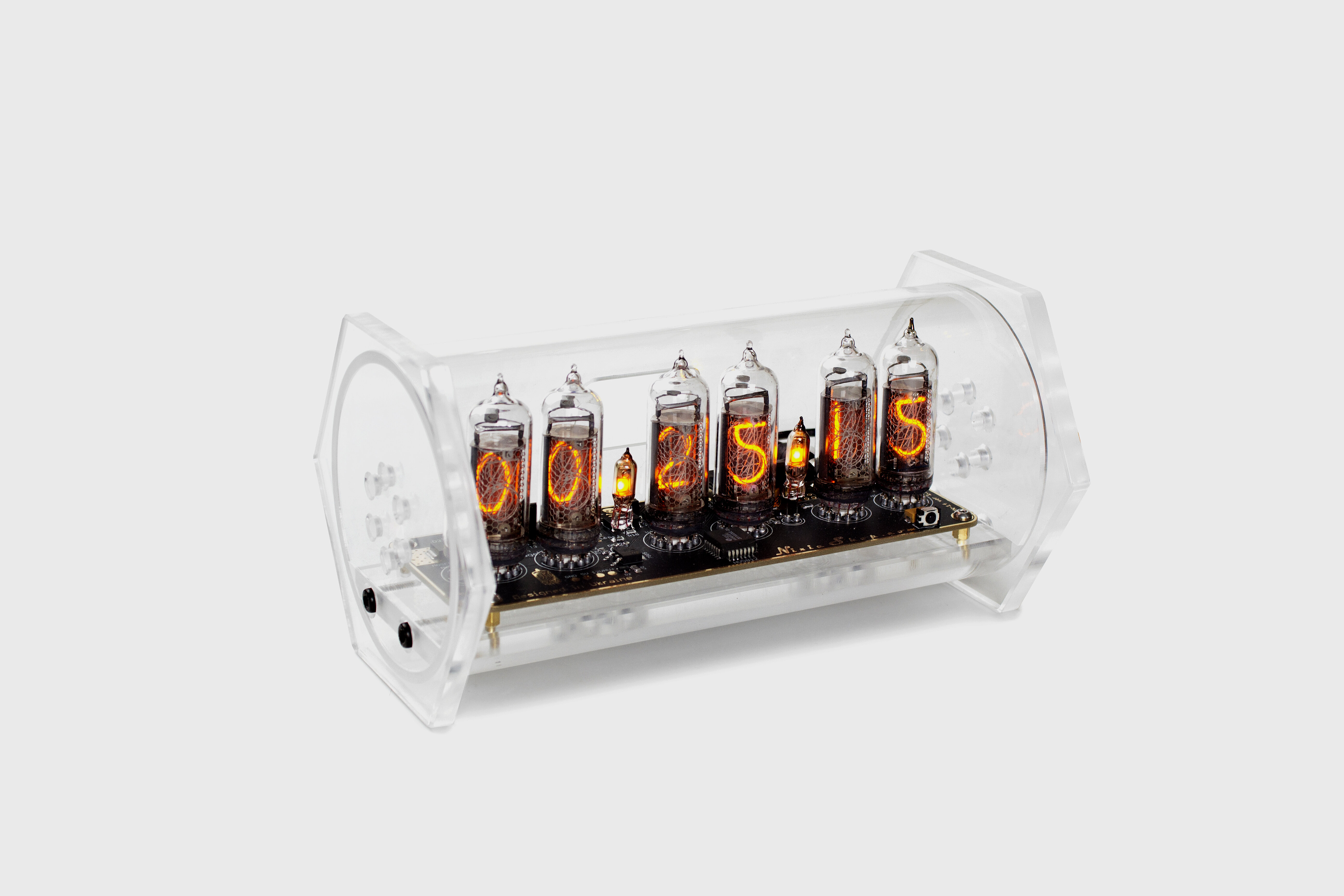

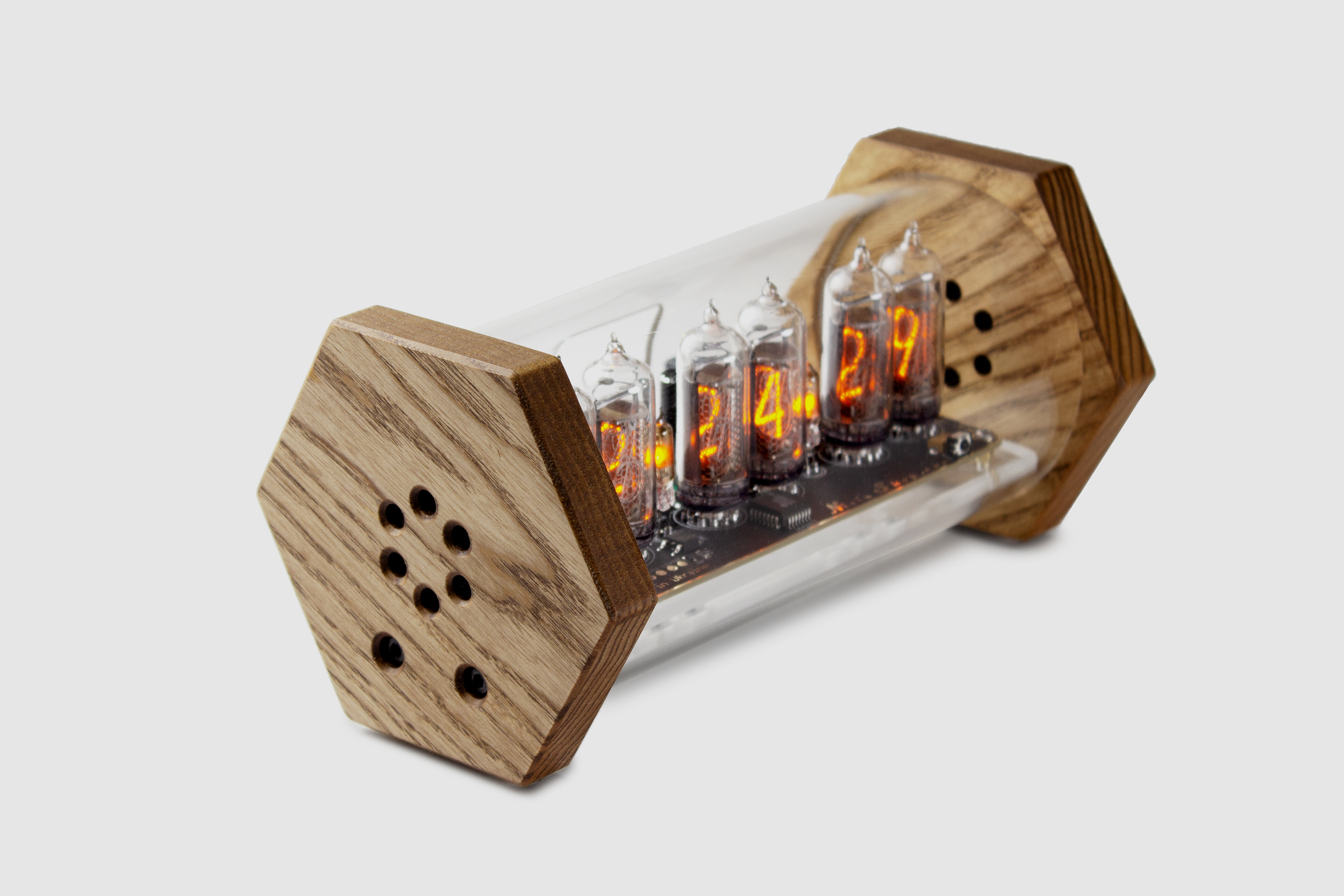

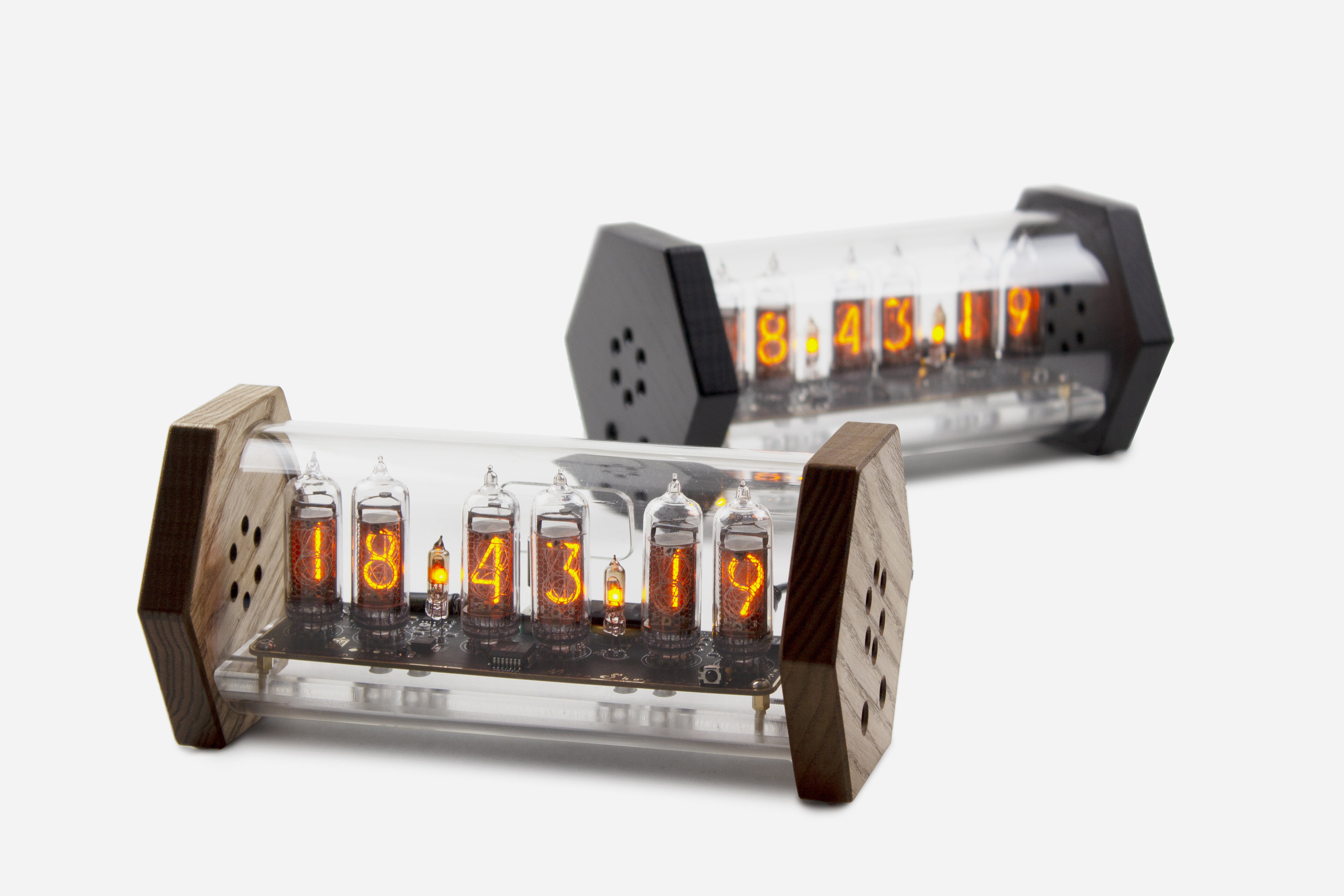

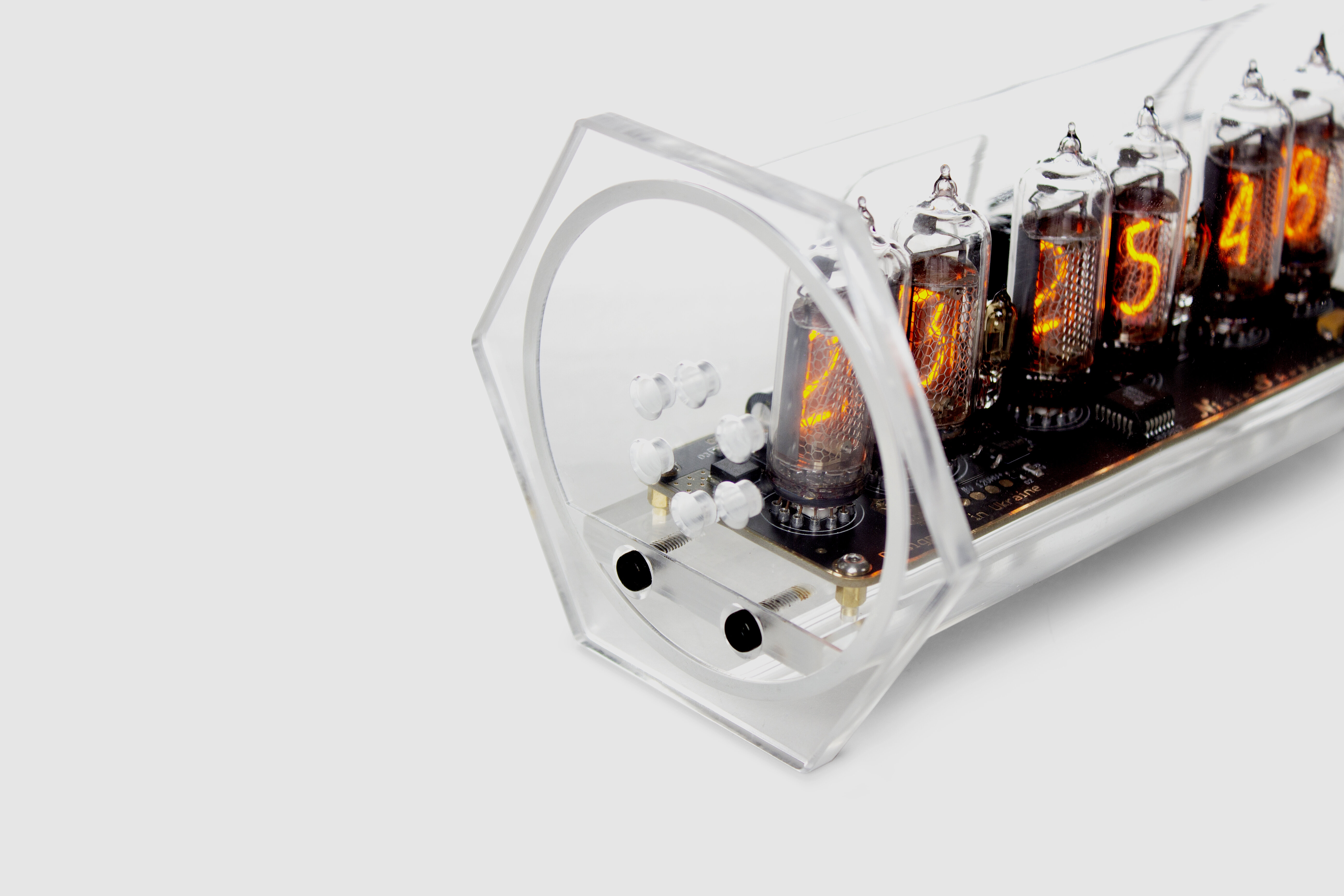

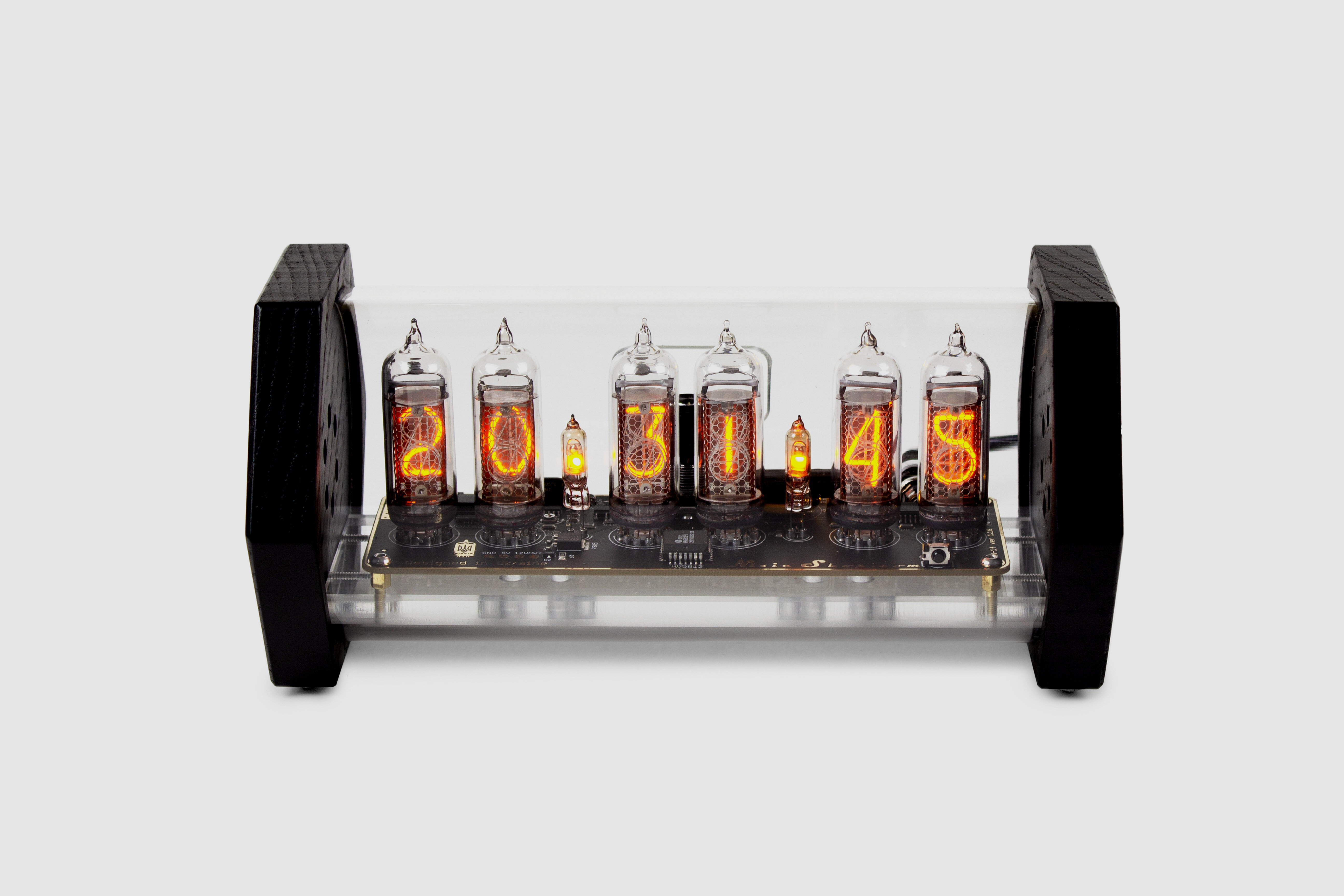

Showcase of the clock

Click images for higher resolution photos.

description

The clock is built with 6 numeric nixie tubes.

built-in rgb led back-light (with 10 levels for each channel) allows you to set your favorite color.

simple user-friendly menu (navigated with knob) allows you to manage all the settings. knob click changes menu position and rotations adjusts the value.

time accuracy is provided with built-in rtc (real time clock ds3231) module and backuped with cr2032 battery while the clock is powered off.

at the end of each minute (could be configured to be set from 1-5 minutes period or completely disabled) starts “slot machine” feature that helps to prevent cathode poisoning effect. it scrolls over all numbers from 0 to 9. it is necessary to prolong tubes lifespan.

current date is shown each 1-5-th minute in 3 various formats: dd:mm:yy, mm:dd:yy or yy:mm:dd. the current time could be configured to 12 or 24 hour format.

there is also three modes for colon tubes: 1) blinks once a second (is set as a default option); 2) permanently off; 3) permanently on.

clock could be set to beep once an hour (when hour starts).

the clock also has an alarm feature.

all setting are stored in non-volatile memory (settings are restored after power-offs).

buying our product you get completely assembled, ready for use and well tested clock. dc power adapter and user manual are provided.

the enclosure has a following dimensions: height - 105 mm; width - 210 mm: length - 115 mm. tube height is: 45 mm. digits size depends on model of the tubes.

User manual

For more information on device's features please refer the user manual: English

How to buy

You can place your order from our website via PayPal button or make a purchase at our eBay or Etsy store. These options are slightly more expensive due to sellers fee.

Shipping is FREE via International Air mail with tracking number.

Walls color/type:

Nixie tubes type: Not sure about tubes type? See the difference at F.A.Q. section here.

PCB color: See more details on PCB color here.

DC adapter plug type: See more information in FAQ section here

Shipping method: Make sure you are aware of possible import taxes for your country. See more information in FAQ section here.

Total price:
